The main function is to make the product meet the quality and color required by customers. In order to meet the customer's requirements, the experimental results and their ratios are used in the production line. equipment to mix evenly.
Material mixing, color testing, tableting
Color matching test
Soft and hardness test
Trials of various special ingredients
Small production jobs
| Model | KY-3203C-120 | KY-3203C-160 | KY-3203C-200 |
| Main motor power | 1.5KW | 2.2KW | 5.5KW |
| Heating power | 9KW | 9W | 9KW |
| Heating temperature: | 250℃ | 250℃ | 250℃ |
| Heating method: | oil-heated | oil-heated | oil-heated |
| Temperature accuracy: | ±1℃ | ±1℃ | ±1℃ |
| Roller size: | 120x350 | 160x400 | 200x500 |

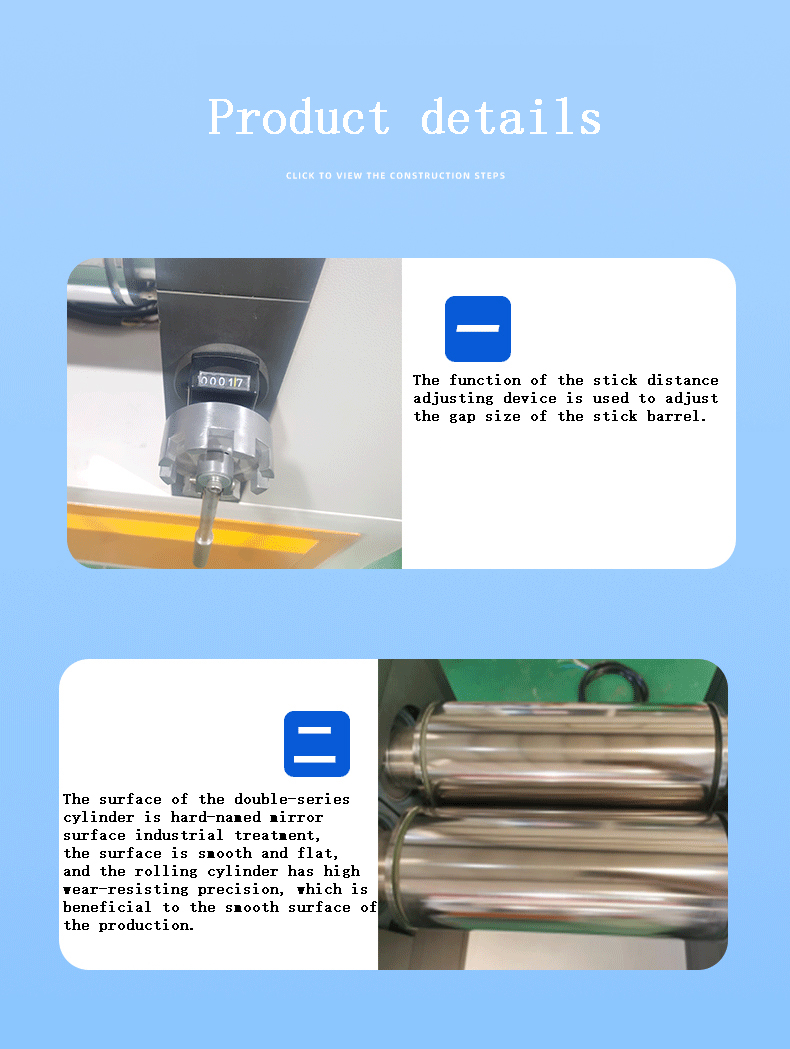

| Roller spacing : | 0.1～5mm (Adjustable) | 0.1～5mm (Adjustable) | 0.1～5mm (Adjustable) |
| Roller hardness: | HRC 50~60 | HRC 58~60 | HRC 58~60 |
| Rotating speed of roller: | 0～20r/min (Adjustable) | 0～20 r/min (Adjustable) | 0～20 r/min (Adjustable) |
| Overall Dimensions: (W*D*H) | 1350*700*1350mm | 1350*700*1350mm | 1550*780*1500mm |
| Volume of die heater: (W*D*H) | 1050*550*1200 mm | 1050*550*1200 mm | 1050*550* 1200 mm |
