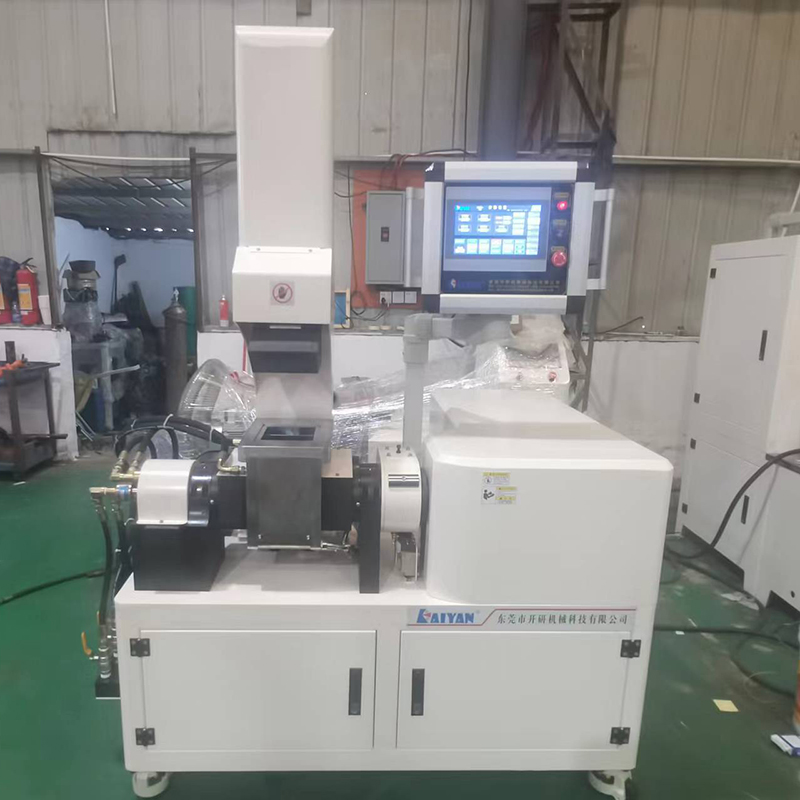

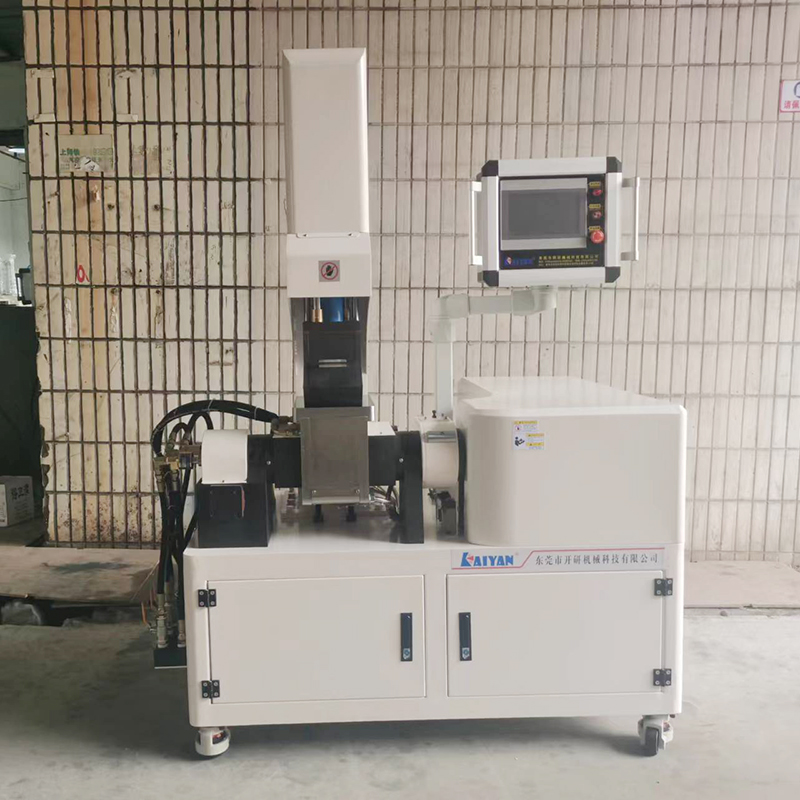

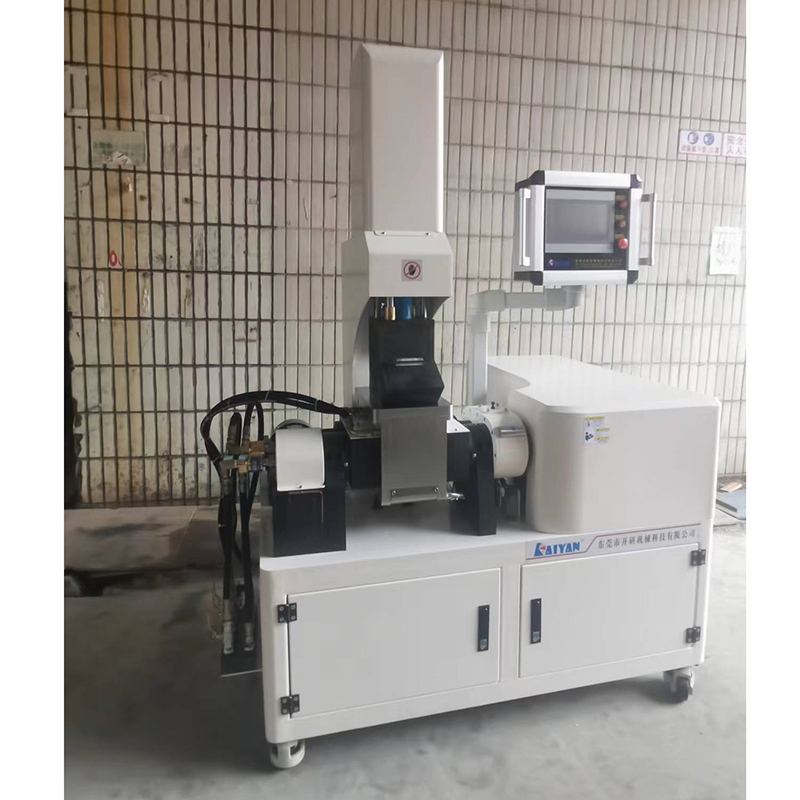

KY-3220X-1L
The mixing chamber of this machine adopts the design of "M-W" pressurized mixing tank. The material of the mixing chamber is made of alloy steel. The processing method is wire cutting and CNC finishing. There are no welding points in the whole mixing chamber. The surface treatment of the whole mixing chamber is electroplating. , plus polishing treatment, its main purpose is to make the product meet the quality and color required by customers. In order to meet customer requirements, the experimental results and their ratios are used in the production line. equipment for mixing uniformly.
1. PE+carbon black, rubber, UHMWPE+ tungsten carbide, PVDF/FEP+CB rubber products: various rubber rings, rubber tubes, adhesive tapes, rubber belts, shockproof rubber, rubber rollers, rubber sponges, tires, rubber soles, oil seals And so on silicone rubber miscellaneous parts, footwear, sports balls and other industries. Wait
2. Mixing of chemical industry raw materials: mixing of various cable materials, color masterbatches, EVA, PVC, carbon black, low-smoke non-halogenated materials, TPR, cable heat shrinkable tubes, high-calcium-filled engineering materials, etc. Refine.
1. The rotor of the mixer does not leak powder
2. The mixing chamber is sealed without dust
3. Intelligent temperature control, automatic production by setting program
4. Mixing tank, surface polishing, hardness HRC56-60℃
1. The whole machine has overload protection device
2. Emergency stop device
3. Display setting signal and alarm
4.Interlock protection device to ensure reliable and stable operation of the host
1. Mixing chamber volume: 1.5L
2. Main motor: AC motor, power 15kw
3. Reducer: the base and frame are welded with low carbon steel, and include a forced lubrication circulation system;
4. Rotor: Designed and manufactured according to the rotor structure diagram provided by the user, the front and rear rotor speed ratio is 1:1.38 The maximum rotor speed: 100 rpm
5. Face wall: integral alloy steel structure, drilling heating, inner surface hardening chrome plating
6. Top bolt: hydraulic drive, hard surface plating
7. End face seal: high wear-resistant material of seal ring, self-lubricating bearing, hinge spring top seal
8. Hopper: Manual operation
9. Control mode: manual operation and semi-automatic operation
10. The maximum temperature of the internal mixer: normal temperature to 250
